Mechanical Gate Valve Definition and Components

1.1 What is an MJZ45X Mechanical Joint Non-rising Resilient Gate Valve?

MJZ45X is a specialized waterworks gate valve featuring Mechanical Joint (MJ) connections, designed specifically for ductile iron water piping systems:

• MJ: Mechanical Joint connection (AWWA C111 standard)
• Z: Gate Valve
• 45: Non-rising stem, flanged design
• X: Resilient (rubber) seat

This is a restrained joint Gate Valve for Water specifically engineered for water distribution systems where thrust restraint is required without external anchoring. The Mechanical Joint provides both sealing and restraint against pipe separation due to internal pressure or external loads.

1.2 Main Components (MJ-Specific Design)

Role, Characteristics, and Application Scenarios of Mechanical Gate Valve in Pipelines

2.1 Pipeline Functions

• Restrained Joint Isolation: Provides both shutoff and thrust restraint in one assembly
• Main Line Control: Primary isolation valve in pressurized water transmission mains
• Pressure Zone Boundary: Separation between different pressure zones with restraint capability
• System Integrity: Maintains pipeline continuity during pressure surges and water hammer
• Zero-Leakage Sealing: Bubble-tight closure with resilient seating

2.2 MJ-Specific Operational Features

2.3 Application Scenario Diagram

Mechanical Gate Valve Standards: Materials, Design, and Connections

3.1 Fire Protection Valves and Fittings Material Standards

3.2 Design Standards

3.3 Connection Standards

Mechanical Joint (MJ) Specifications:

• Joint Type: AWWA C111 Standard Mechanical Joint
• Pressure Rating: 150 psi (standard), 200 psi (high pressure), 350 psi (test pressure)
• Deflection Allowance: Up to 5° per joint
• Restraint Method: Gland bolts provide positive restraint
• Gasket Type: Wedge-shaped EPDM, pressure-activated

MJ End Dimensions (Example - 12" Valve):

• Bell Inside Diameter: 13.50"
• Bell Depth: 4.00"
• Gland Width: 1.50"
• Bolt Circle: 17.00"
• Number of Bolts: 8
• Bolt Size: 1" diameter

How to Select Mechanical Gate Valve

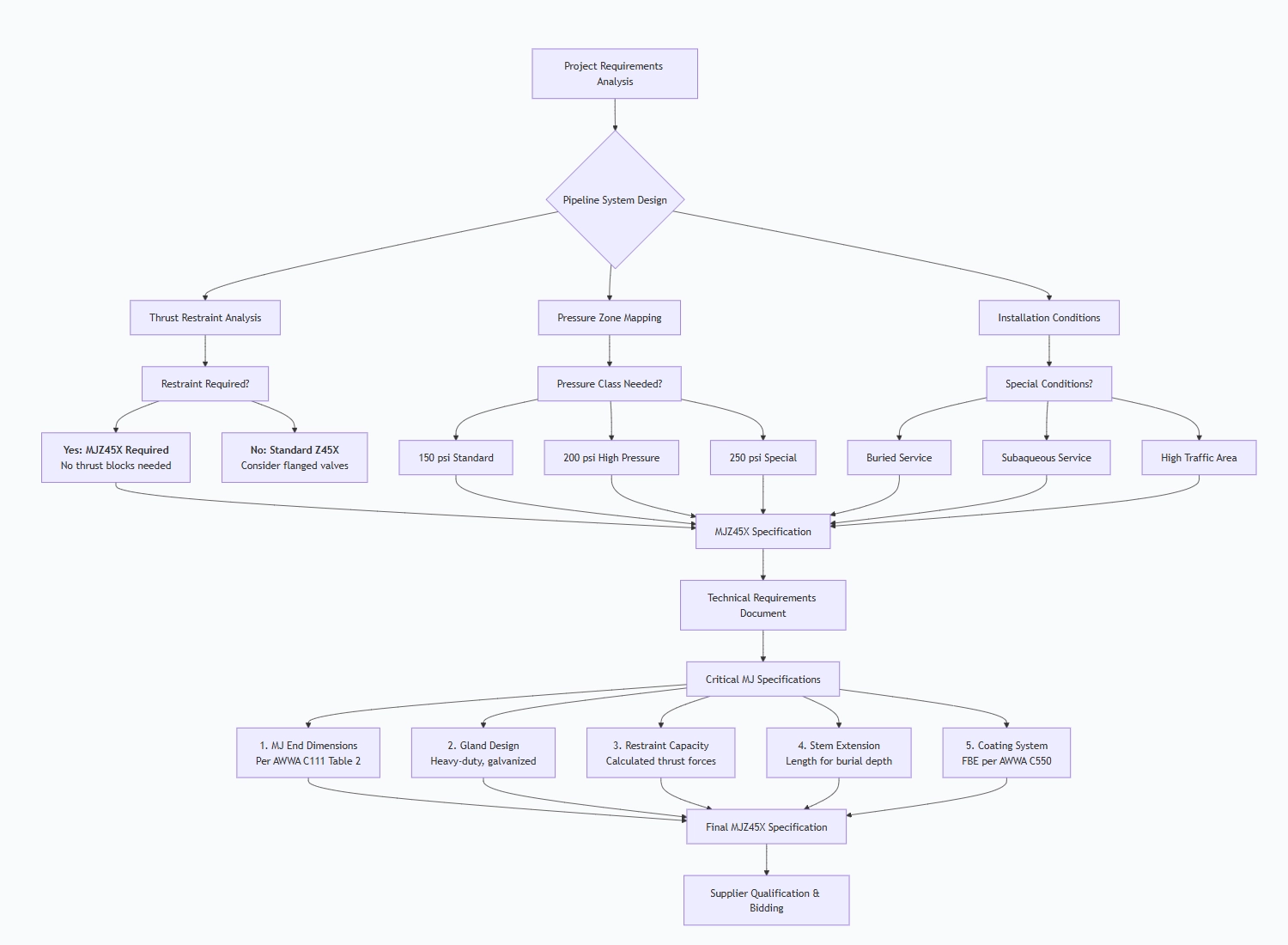

4.1 Specification Development Process

4.2 Critical MJ-Specific Specifications

Mechanical Joint Requirements:

MJ END SPECIFICATIONS:

• Standard: AWWA C111 Mechanical Joint
• Pressure Class: 150 or 200 psi
• Gland Type: Heavy-duty, ductile iron
• Gasket Material: EPDM per AWWA C111
• Bolting: T-head bolts, hot-dip galvanized
• Bolt Torque: Specify installation torque values

Restraint Capacity Calculations:

• Design Thrust Force: Calculate based on maximum operating pressure
• Safety Factor: Minimum 2:1 safety factor for restraint
• Soil Conditions: Consider burial depth and soil type for additional restraint needs
• Test Pressure: Ensure MJ assembly can withstand 350 psi test pressure

Stem Extension Requirements:

• Burial Depth: Determine operating nut depth below grade
• Extension Type: Two-piece or single-piece design
• Material: Galvanized steel or coated ductile iron
• Operation: Square drive size (2" minimum for valves ≥12")

Special Conditions:

• Subaqueous Service: Enhanced corrosion protection, cathodic protection provisions
• Traffic Loads: Heavy-duty construction for high traffic areas
• Seismic Zones: Flexible joint allowances, additional restraint considerations

4.3 Supplier Qualification Requirements

Mandatory MJ-Specific Qualifications:

• AWWA C111 Manufacturing License: For MJ end production
• AWWA C509 License: For valve manufacturing
• MJ Tooling Verification: Proper molds and tooling for MJ bells
• Gland Production Capability: In-house gland manufacturing or certified supplier
• Assembly Testing: Facilities for MJ joint assembly testing

Factory Audit Checklist for MJ Valves:

• MJ Bell Casting: Verify dimensional control and quality
• Gland Manufacturing: Check machining and coating processes
• Assembly Procedures: Review MJ assembly torque procedures
• Testing Capabilities: Pressure testing of assembled MJ joints
• Quality Control: Dimensional verification of MJ components

4.4 Purchase Documentation Requirements

MJ-Specific Items to Include in PO:

• AWWA Standard References: C111, C509, C550
• MJ Dimension Table: Reference to specific AWWA C111 table
• Gland and Gasket Requirements: Material and dimensional specifications
• Assembly Instructions: Torque values and assembly sequence
• Field Installation Kit: If including installation tools
• Spare Parts List: Gaskets, bolts, glands for field use

Pre-Shipment Inspection for Export Mechanical Gate Valve and Key Considerations

5.1 MJ-Specific Inspection Protocol

Phase 1: Documentation Review (MJ-Specific)

MJZ45X REQUIRED DOCUMENTS:

1. AWWA C111 Compliance Certificate for MJ ends
2. MJ Gland and Gasket Material Certificates
3. Bolt and Nut Certifications (ASTM A307, galvanizing cert)
4. Dimensional Reports for MJ bells (per AWWA C111 Table 2)
5. Assembly Torque Procedure Documentation
6. Restraint Capacity Calculations
7. Coating Certificates (FBE per AWWA C550)

Phase 2: MJ End Dimensional Inspection

Phase 3: Material and Coating Verification

• PMI Testing: Verify ductile iron grade and stainless steel stem
• Coating Thickness: FBE coating 10-16 mils (AWWA C550)
• Adhesion Test: Cross-hatch test per ASTM D3359
• Holiday Detection: 67.5 volts per mil of coating (for FBE)

Phase 4: MJ Assembly and Testing

MJ Joint Assembly Test:

Test Procedure:

1. Assemble MJ gland and gasket on test pipe spool
2. Torque bolts to specified values (typically 75-150 ft-lbs)
3. Perform hydrostatic test at 350 psi for 2 minutes
4. Check for leakage at MJ joint
5. Disassemble and inspect gasket compression

Valve Pressure Testing (Per AWWA C509):

• Shell Test: 300 psi for 2 minutes (for 150 psi valve)
• Seat Test: 150 psi bubble-tight, both directions
• MJ End Test: Test with assembled MJ connections if possible

Restraint Verification:

• Pull Test: Apply calculated thrust force to verify restraint
• Torque Verification: Check gland bolt torque values
• Gasket Compression: Measure compressed gasket thickness

5.2 Special MJ Considerations

Gland and Gasket Inspection:

• Verify gasket is correct wedge profile for MJ
• Check gland casting for defects affecting restraint
• Ensure T-head bolts have proper galvanizing
• Verify gland fits valve bell properly

Assembly Procedure Verification:

• Check that assembly instructions are clear and complete
• Verify torque values are appropriate for bolt size
• Ensure proper bolt tightening sequence is documented
• Check that lubrication requirements are specified

5.3 Export Preparation Protocol

MJ End Protection:

CRITICAL PROTECTION REQUIREMENTS:

1. MJ Bell Protection: Heavy-duty plastic caps with retention straps
2. Gland Protection: Separate packaging with corrosion protection
3. Gasket Protection: Sealed plastic bags with desiccant
4. Bolt Protection: Coated or bagged with VCI protection
5. Thread Protection: Plastic caps on all threaded components

Packaging Configuration:

• Valve Body: Crated separately with MJ bells protected
• Gland Assembly: Packed in separate box within main crate
• Gaskets and Bolts: Sealed packages with part numbers
• Stem Extension: If provided, packed separately with supports
• Installation Tools: Special kit if included in order

MJ-Specific Marking:

Crate Marking:

MJ VALVE - MECHANICAL JOINT

• SIZE: [Diameter]
• AWWA C111 / C509
• PRESSURE: 150/200 psi
• CONTAINS: Valve, Gland, Gaskets, Bolts
• HANDLE WITH CARE - DO NOT DROP

Component Marking:

• Valve body: Size, pressure rating, AWWA standards
• Gland: Size, part number, material
• Gaskets: Size, material, pressure rating
• Bolts: Size, grade, quantity

1. Documentation Package (MJ-Specific):

Technical Documents:

• MJ Assembly Drawings: Detailed assembly instructions
• Torque Specifications: Bolt torque values and sequences
• Installation Manual: Field installation procedures
• Restraint Calculations: Engineering calculations for thrust forces
• Test Reports: MJ joint assembly test results

Certification Documents:

• AWWA C111 Compliance Certificate
• MJ Gland and Gasket Material Certificates
• Bolt and Nut Material Certifications
• Coating Certificates (FBE per AWWA C550)
• NSF/ANSI 61 Certification for all wetted parts

5.4 Special Precautions for MJ Valves

Joint Protection During Shipping:

• Bell Protection: Rigid caps that withstand stacking loads
• Gland Protection: Prevent distortion of gland during transit
• Thread Protection: All threads must be protected from damage
• Coating Protection: Prevent abrasion of FBE coating

Climate Considerations:

• Gasket Storage: EPDM gaskets must be protected from ozone and UV
• Temperature Limits: Store between -10°C and +40°C
• Humidity Control: Desiccant in all packages containing metal parts

Handling Instructions:

• Lifting Points: Use designated lifting lugs only
• Stacking Limitations: Maximum stacking height based on crate design
• Orientation: Keep valve in horizontal position during transport
• Securing: Adequate blocking and bracing in shipping container

5.5 Final Inspection Checklist

Before Crate Closure:

• MJ bell protection caps installed and secured
• Gland assembly properly packaged and labeled
• Gaskets and bolts in sealed, labeled packages
• All components accounted for per packing list
• Internal bracing to prevent movement
• Desiccant and moisture indicators placed
• Documentation package in waterproof pouch

MJ-Specific Checks:

• MJ dimensions verified against AWWA C111
• Gland fit-up checked on valve bell
• Bolt holes aligned and clean
• Gasket groove free of defects
• Coating intact on all MJ surfaces
• Threads protected on all bolting

5.6 Common MJ-Specific Issues to Prevent

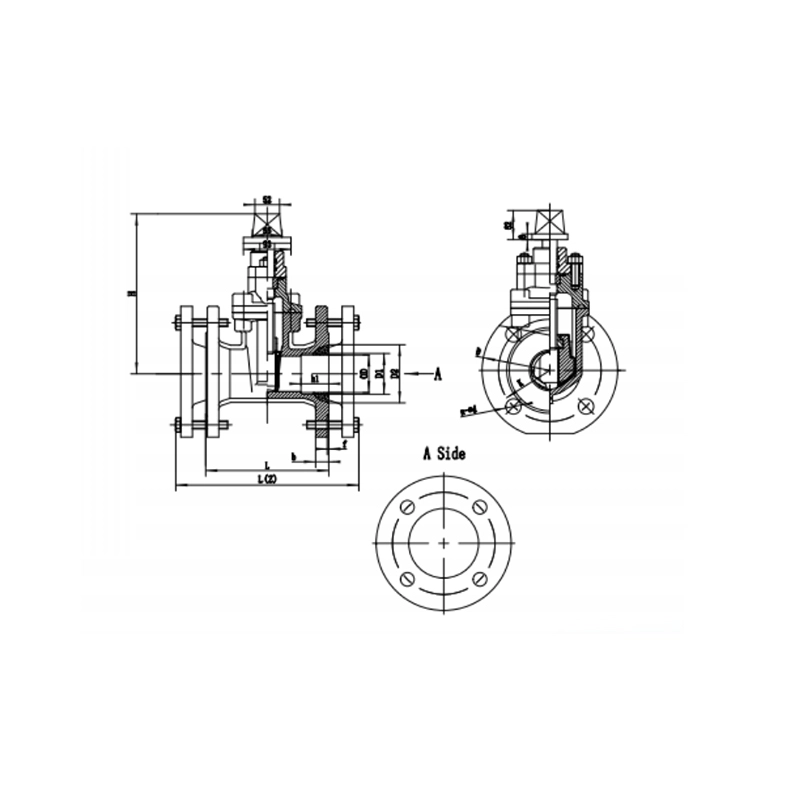

Mechanical Gate Valve Main dimensions(mm)
