Vertical type Indicator Post

Vertical type Indicator Post Definition and Components

Vertical Type Indicator Post Model 9102 is a freestanding, ground-mounted mechanical position indicator designed to visually display the open/closed status of buried pipeline valves. Unlike wall-mounted models, Vertical Indicator Post stands vertically from the ground and is commonly installed directly above the buried valve location.

Post Indicator Valve Main Components:

Vertical Indicator Column

• Main Column: 3" or 4" diameter steel pipe (typically 4-6 feet tall)
• Target Assembly: Rotating disc with color-coded faces (red/white or yellow/black)
• Weather Hood: Protective cover over target mechanism
• Position Markings: Clear "OPEN" and "SHUT" labels

Drive Transmission System

• Drive Shaft: Stainless steel rod inside column
• Bevel Gear Box: Converts vertical rotation to horizontal at base
• Adjustable Coupling: For alignment with valve stem
• Thrust Bearings: Support vertical load

Foundation & Base Assembly

• Base Plate: Heavy steel plate for stability
• Anchor Bolts: For concrete foundation
• Access Door: Lockable door for maintenance
• Drainage: Prevents water accumulation

Underground Connection

• Extension Rodding: Connects to buried valve stem
• Rod Guides: Support and alignment sleeves
• Universal Joints: Accommodate angular misalignment
• Protective Sleeve: Prevents soil contact with moving parts

Role, Characteristics, and Application Scenarios of Vertical type Indicator Post in Pipelines

Primary Functions:

• Above-Ground Visibility: Provides clear visual indication of valve position
• Direct Mechanical Link: Physically connected to valve stem
• All-Weather Operation: Designed for outdoor exposure
• Tamper Resistance: Lockable access prevents unauthorized operation

Operational Features:

• Freestanding Design: No building or wall required for mounting
• High Visibility: Typically 4-6 feet tall for easy viewing
• Direct Drive: Minimal moving parts for reliability
• Corrosion Resistant: Suitable for buried/outdoor installations
• Low Maintenance: Sealed bearings, weatherproof construction

Fire Valve Application Scenarios:

• Municipal Water Systems: Valve pits in streets and parks
• Fire Protection: Hydrant control valves in open areas
• Irrigation: Main line valves in agricultural fields
• Industrial Sites: Process valves in yard piping
• Pipeline Crossings: Valve locations along pipeline routes

Vertical type Indicator Post Standards: Materials, Design, and Connections

Material Standards:

• Column: Schedule 40 steel pipe (ASTM A53), galvanized or coated
• Target Disc: Aluminum or ABS plastic, UV resistant
• Gears & Shafts: Stainless Steel 304/316 (ASTM A276)
• Bearings: Sealed ball bearings, bronze bushings
• Fasteners: Hot-dip galvanized or stainless steel

Design Standards:

• AWWA C504: Standard for indicator posts
• UL/FM: For fire protection applications
• BS 5163: British standard for indicator posts
• ISO 9001: Quality management certification
• NEMA 4X: Weatherproof enclosure rating

Connection Standards:

• Valve Stem: 1" or 1¼" square drive typical
• Column Base: ½" or ¾" anchor bolts
• Access Door: Lockable hasp standard
• Optional Electrical: ½" NPT conduit entry

How to Select Vertical type Indicator Post

Purchasing Checklist:

Specification Requirements:

• Valve stem size and type
• Required height above ground
• Environmental conditions (coastal, chemical, freeze/thaw)
• Color scheme preference
• Optional features (lighting, switches)

Supplier Evaluation:

• UL/FM certification for fire applications
• Experience with municipal/utility installations
• Customization capabilities
• Technical support availability

Documentation Needed:

• Product certifications
• Installation drawings
• Material test reports
• Operation manual

Commercial Terms:

• Lead Time: 3-6 weeks
• Payment: 50% deposit, balance before shipment
• Warranty: 2-5 years
• Shipping: Palletized or crated

Pre-Shipment Inspection for Export Vertical type Indicator Postand Key Considerations

Inspection Protocol:

• Visual Check: No damage, proper coatings
• Mechanical Test: Smooth rotation, proper alignment
• Material Verification: Certificates match specifications
• Weatherproof Test: Check seals and gaskets
• Packaging: Adequate protection for overseas shipment

Export Precautions:

• Corrosion Protection: VCI paper on internal components
• Column Protection: End caps on pipe openings
• Target Protection: Bubble wrap on indicator face
• Small Parts: Bagged and labeled separately
• Documentation: Multilingual installation guide included

Real-World Municipal Application:

In this street intersection scenario, two vertical indicator posts provide immediate visual confirmation of valve status for:

• Water Department Crews: During daily patrols, operators can drive by and check all posts without stopping
• Emergency Responders: Fire department can instantly see which valves are open before connecting to hydrants
• Maintenance Teams: Quickly identify isolation points for repairs
• Public Works: Protect posts during street construction

The 4-foot height ensures visibility from maintenance vehicles, while the red/white color scheme provides clear indication even at 300 feet distance. The concrete foundation prevents settling or tilting, and the lockable access door prevents unauthorized operation while allowing easy maintenance access.

Key Advantages in Municipal Use:

• 24/7 Visibility: Unlike electronic systems, always visible
• No Power Required: Fully mechanical, no batteries or wiring
• Vandal Resistant: Durable construction withstands urban environment
• Low Maintenance: Annual lubrication typically sufficient
• Standardized: All posts in system work identically for training

This installation represents best practices in municipal water system management, providing reliable valve status indication that improves system reliability, speeds emergency response, and reduces operational costs.

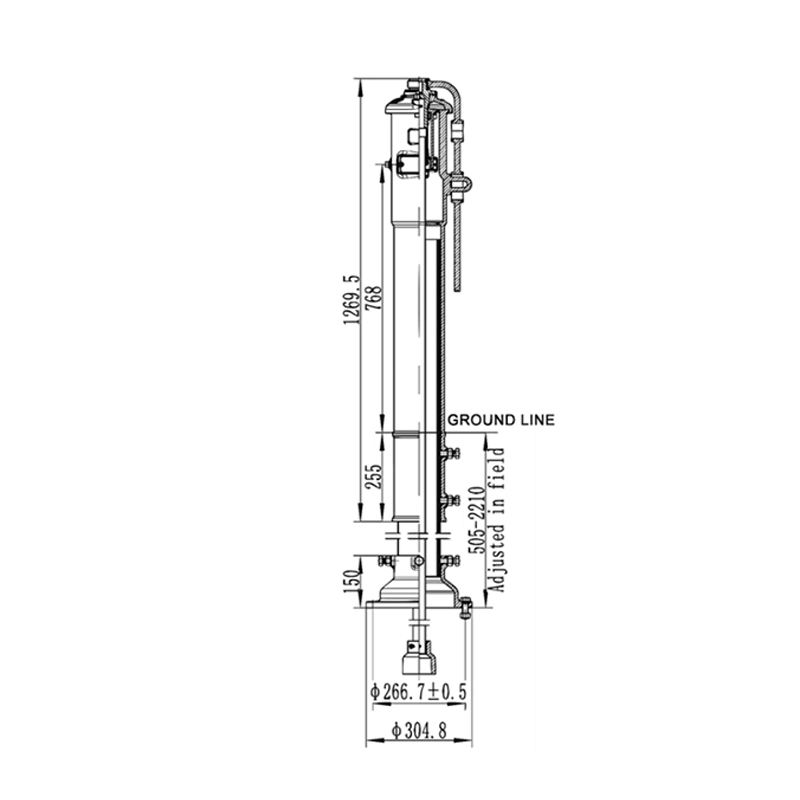

Vertical type Indicator Post Material List
