Rolling Ball Check Valve HO41X

Rolling Ball Check Valve Purpose

This product is mainly set on the pump outlet in cold water, hot water, industrial and living sewage pipe-nets to prevent the medium from back flow and more suitable for Submersible sewage pumps.

Rolling Ball Check Valve Definition and Components

Definition:

A Rolling Ball Check Valve HO41X is a specialized type of silent check valve that uses a spherical ball as the closing element. The designation indicates:

• HO41X: Chinese standard designation (GB/T 12238) for "ball type check valve"
• Rolling Ball: Features a free-moving ball that rolls in and out of seating position
• Silent Operation: Designed to prevent water hammer and noise during closure

Main Parts:

• Body: Typically cast iron, stainless steel, or bronze with Y-pattern design
• Ball: Precision sphere made of stainless steel, chrome steel, or rubber-coated metal
• Seat: Machined conical or spherical seating surface, often with elastomeric insert
• Spring: Optional compression spring to assist ball return (silent check version)
• Body Cap/Cover: Removable end cap for ball access and maintenance
• Gasket: Seals between body and cap
• Guide/Retainer: Keeps ball aligned in flow path
• Connection Ends: Threaded (NPT/BSP) or flanged connections

Role, Characteristics, and Application Scenarios of Rolling Ball Check Valve in Pipelines

Functions in Pipelines:

• Backflow Prevention: Automatically closes when flow stops or reverses
• Water Hammer Elimination: Slow, controlled closure prevents pressure surges
• Silent Operation: No "slam" or impact noise during closing
• Vertical/Horizontal Installation: Can be installed in any orientation

Operational Features:

• Low Cracking Pressure: Opens with minimal forward pressure (0.02-0.1 bar)
• Minimal Flow Restriction: Full port design with low pressure drop
• Quick Response: Rapid closure prevents reverse flow momentum
• Self-Cleaning: Ball rotation helps prevent debris accumulation
• Bubble-Tight Closure: Precision ball and seat provide zero leakage

Application Scenarios:

• Pump Protection: On discharge side of centrifugal pumps
• Hydronic Systems: Heating and cooling water circuits
• Compressed Air Systems: Prevent backflow in pneumatic lines
• Chemical Injection: Metering pump discharge lines
• Irrigation Systems: Drip and sprinkler system protection
• Laboratory Equipment: Precision fluid control systems
• Medical Equipment: Sterile fluid handling systems

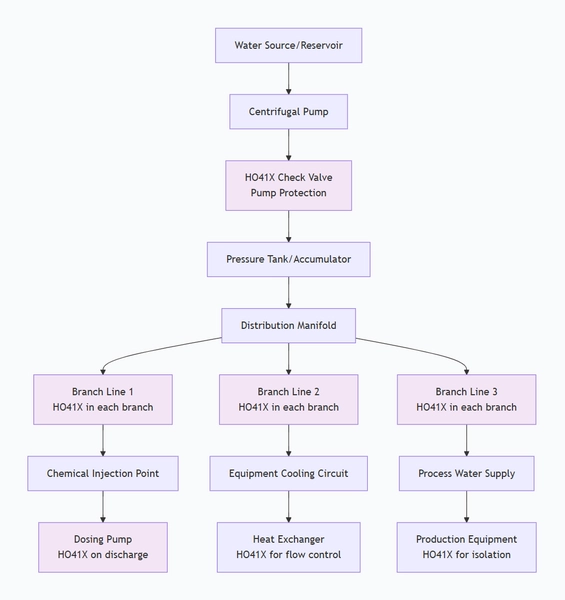

Scenario Diagram:



Rolling Ball Check Valve Standards: Materials, Design, and Connections

Standard Category	Applicable Standards	Specific Requirements
Design Standard	GB/T 12238-2008	Ball type check valves general specification
International Equivalents	API 6D, ASME B16.34, DIN 3357	Similar international standards
Material Standard	Body: GB/T 12226/12227/12229 Ball: GB/T 1220 (Stainless) Seat: GB/T 21873 (Elastomers)	Material specifications
Connection Standards	Threaded: GB/T 7306, GB/T 12716 Flanged: GB/T 17241, GB/T 9113	Connection specifications
Pressure-Temperature	GB/T 12224	Pressure-temperature ratings
Testing Standard	GB/T 13927-2008	Pressure testing requirements
Spring Standards	GB/T 1239, GB/T 2088	Spring specifications if applicable

Pressure Ratings:

• Standard: PN16, PN25, PN40
• High Pressure: PN63, PN100 available
• Working pressure up to 40 bar (580 psi)

Size Range:

• Small bore: DN15 to DN50 (½" to 2") most common
• Larger sizes: Up to DN150 (6") available
• Miniature versions: ¼", ⅜" for instrumentation

How to Select Rolling Ball Check Valve

Water supply valve types Technical Specification Checklist:

Critical Parameters:

•   Size: DN [15/20/25/32/40/50 etc.]
•   Pressure Rating: PN16/PN25/PN40
•   Connection Type: Threaded (NPT/BSP), Flanged, Union ends
•   Body Material: Cast Iron/Brass/Stainless Steel 304/316
•   Ball Material: Stainless Steel 304/316/Chrome Steel/Ceramic
•   Seat Material: EPDM/NBR/Viton/PTFE/Metal
•   Spring Option: With/without spring (specify spring material)
•   Temperature Range: Standard: -20°C to 120°C

Performance Requirements:

•   Cracking Pressure: Specify exact value (e.g., 0.05 bar)
•   Flow Coefficient: Cv/Kv value required
•   Leakage Class: Class IV/Class VI/Zero leakage
•   Maximum Working Temperature: Based on seat material
•   Flow Direction: Horizontal/Vertical/Any position

Check Valve for Water Certification Requirements:

•   GB/T 12238 compliance certificate
•   ISO 5208 leakage test report
•   Material certificates (EN 10204 2.1/3.1)
•   CE/PED for European market
•   UL/FM for fire protection applications
•   3.1B material certificates for pressure equipment

Supplier Evaluation Matrix:

Criteria	Weight	Evaluation Points
Technical Capability	30%	Ball precision machining, spring manufacturing, testing facilities
Quality System	25%	ISO 9001, material traceability, process control
Experience	20%	Years in production, similar project references
Pricing	15%	Competitive pricing, payment terms, Incoterms
Delivery	10%	Lead time, on-time delivery history

Commercial Considerations:

Price Brackets:

• DN15-25: $20-80 per piece
• DN32-50: $50-200 per piece
• Stainless steel versions: 2-3× carbon steel price

Minimum Order Quantity: Typically 10-50 pieces

• Delivery Time: 30 days for standard, 45-60 days for special materials
• Payment Terms: 30% deposit, 70% before shipment
• Warranty: 18-24 months from shipment date

Pre-Shipment Inspection for Export Rolling Ball Check Valve and Key Considerations

Inspection Checklist:

Inspection Item	Method	Acceptance Criteria	Tools Required
Visual Inspection	Visual	No defects, smooth surfaces	Magnifying glass
Dimension Check	Measurement	Within GB/T 12238 tolerances	Calipers, thread gauge
Ball Diameter	Micrometer	±0.01mm tolerance	Micrometer
Surface Finish	Visual/Comparator	Ra ≤ 0.8μm for ball, ≤ 3.2μm for seat	Surface comparator
Spring Force	Spring tester	Within ±10% of specification	Force gauge
Material Verification	PMI gun/Spark test	Correct material grade	PMI analyzer
Markings	Visual	Clear stamping: DN, PN, material, flow arrow	--
Weight	Scale	Within 3% of specification	Digital scale

Specialized Tests:

1. Cracking Pressure Test:

Test Setup:

- Valve installed in test bench

- Pressure gauge with 0.01 bar resolution

- Controlled flow source

Procedure:

1. Gradually increase upstream pressure
2. Record pressure when first flow detected downstream
3. Repeat 3 times, take average

Acceptance:

- Within ±0.02 bar of specified value

- Consistent across multiple tests

2. Flow Coefficient Test (Cv/Kv):

Test Method: ISO 5208 or equivalent

Parameters:

- Test medium: Water at 20°C

- Pressure drop: 1 bar

- Flow measurement: Calibrated flow meter

Calculation:

Cv = Q × √(SG/ΔP)

Where: Q = flow rate, SG = specific gravity, ΔP = pressure drop

Acceptance:

- Within ±10% of catalog value

3. Cycle Life Test (Sampling):

Test Parameters:

- Medium: Clean water

- Pressure: Rated working pressure

- Cycles: 10,000 open-close cycles

- Frequency: 10-20 cycles per minute

Post-Test Inspection:

- Ball surface inspection (no scratches)

- Seat wear measurement (<0.1mm)

- Leakage test (must still meet Class IV)

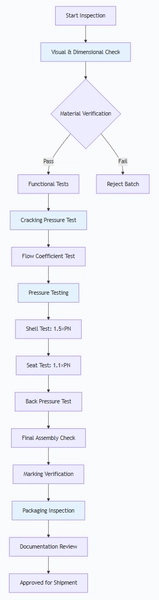

Pressure Testing Protocol:

Packaging Specifications:

Level 1: Individual Valve Protection

Small Valves (DN15-25):

- Plastic bag with anti-corrosion paper

- Foam end caps for threaded connections

- Individual cardboard box with product label

Medium Valves (DN32-50):

- Bubble wrap or foam wrap

- Plastic caps on all openings

- Corrugated box with internal partitions

Large Valves (DN65+):

- Wooden frame with foam cushioning

- Plastic shrink wrap

- Desiccant bag inside

Level 2: Export Packaging

Packing Groups:

- Group by size and material

- Maximum 20kg per inner box

- Stacking limit: 5 boxes high

Crate Requirements:

- 12mm plywood minimum

- Steel strapping every 300mm

- Forklift pockets for >50kg crates

- Humidity indicator in each crate

Labeling:

- "FRAGILE - PRECISION INSTRUMENT"

- "KEEP DRY" with umbrella symbol

- "THIS SIDE UP" arrows

- Net/Gross weight in kg

- Valve quantity and sizes

Critical Precautions:

1. Ball Handling and Protection:

- Never touch precision ball with bare hands

- Store in clean, lint-free environment

- Protect from dust and contamination

- Inspect for surface defects under magnification

2. Spring Protection:

- Prevent over-compression during storage

- Keep away from magnetic fields

- Protect from corrosion

- Verify spring rate before installation

3. Shipping Considerations:

Temperature Control:

- Maintain 5°C to 40°C during transit

- Avoid freezing (can damage elastomers)

- Prevent condensation inside packages

Vibration Protection:

- Use vibration-damping packaging

- Secure valves to prevent movement

- Avoid stacking heavy items on top

Documentation:

- Include MSDS for special materials

- Provide installation torque specifications

- Include spring compression instructions

Common Rejection Criteria:

Material Defects:

Ball out-of-round > 0.005mm

Seat surface scratches visible to naked eye

Corrosion on stainless steel components

Incorrect material grade (verified by PMI)

Performance Failures:

Cracking pressure outside tolerance (±0.02 bar)

Leakage > 0 bubbles per minute (Class IV)

Ball sticks in open or closed position

Excessive pressure drop (>5% above catalog)

Documentation Issues:

Missing or incomplete test certificates

Incorrect material certifications

No traceability to heat/lot numbers

Manuals in incorrect language

Sampling Plan for AQL Inspection:

Lot Size	Sample Size	AQL Major	AQL Minor
2-50	5	0.65%	1.5%
51-150	13	1.0%	2.5%
151-500	20	1.5%	4.0%
501-3200	32	2.5%	6.5%

Final Verification Steps Before Shipping:

Container Inspection:

• Check container for leaks, damage
• Verify cleanliness (no pests, debris)
• Confirm proper ventilation

Loading Supervision:

• Witness loading process
• Verify proper securing of cargo
• Confirm temperature controls if required

Documentation Final Check:

• All certificates signed and stamped
• Packing list matches actual contents
• Shipping marks clearly visible
• Insurance coverage confirmed

Pre-Shipment Meeting:

• Review all inspection reports
• Address any open issues
• Confirm shipping schedule
• Establish communication protocol during transit

By implementing this comprehensive inspection protocol, buyers can ensure HO41X Rolling Ball Check Valves meet the highest quality standards, perform reliably in critical applications, and comply with international regulations for pressure equipment.

Rolling Ball Check Valve Main dimensions(mm)

DN		50	65	80	100	150	200	250	300
L		219	222	256	282	353	432	495	550
D	PN10	185	185	200	220	280	335	395	445
	PN16	185	185	200	220	280	335	405	460
D1	PN10	145	145	160	180	240	295	350	400
	PN16	145	145	160	180	240	295	355	410
n-Фd	PN10	4-19	4-19	8-19	8-19	8-19	8-23	12-23	12-23
	PN16	4-19	4-19	8-19	8-19	8-19	12-23	12-26	16-26

Note:1. Other specifications and flange standards are available upon request.

2. Design and specifications are subject to change without prior notice.
